Pay attention:

1. Led strip welded by 0.5m is very normal in an electronic product, not a quality problem. if you mind this, don't place order!

2. IP30: Non-Waterproof

IP65: Waterproof in silicone coating

IP67: Waterproof in SiliconTube

This link is not include power supply and led controller, please know it

WS2811 LED strips:

(1) Working Voltage: DC 12V

(2) LED source: SMD 5050 RGB

(3) LED chip: Epistar

(4) LED QUANTITY: 30/60 LED/M

(5) IC QUANTITY: 10/20M

(6) Power: 9/18W/M

(7) gray scale: 256/color

(8) Cutability: 3 led/cutting (Similar to WS2811, 1 ic control 3 LED)

(9) Beam Angle: 120°

(10) Color Mode: 133 Patterns & 100 Speeds

(11) IP Grade: ip30 non-waterproof/ip67 waterproof

(12) Dimension: 5000x10x2.4mm

(13) Packing: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector

WS2812 LED strips:

Input voltage: DC5V

Power: 30Leds/m ---- 9Watts/meter

60Leds/m ---- 18Watts/meter

144Leds/m ---- 43.2W/meter

LED Resource: WS2812B Led (5050 SMD RGB LED With Built-in Upgraded Version Of WS2811 IC)

LED: Each Led Separately Controlled

IC Type: Upgraded Version WS2812 IC (Built Inside The 5050SMD RGB LED)

From IC: 1 IC Sticks 1 Led Chip

Pixels: 30/60/144/meter

Pitch: 16.6mm(1000/64)

Gray scale: 256

Bits/color: 8-bits/color

FPC Width: 30Leds/m ---- 10mm

60leds/m ---- 10mm

144leds/m ---- 12mm

FPC color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: full color RGB, dream color change

Cuttable: Each LED is cuttable

Package: In Anti-Static Bag, IP30 IP65 With 3M Adhensive Tape On Back (IP67 Without 3M Adhensive)

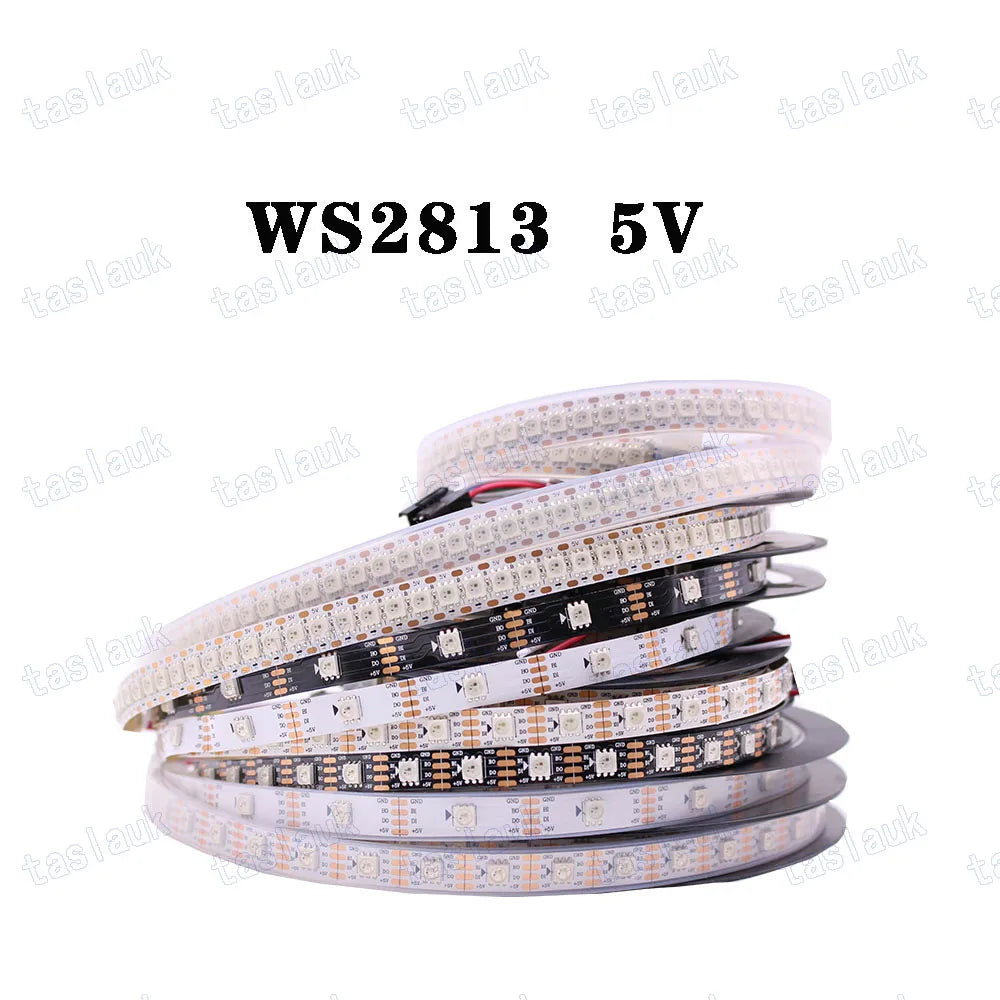

WS2813 LED strips:

Input voltage: DC5V

Power: 30 Leds/M --- 9 Watts/Meter / 60 Leds/M --- 18 Watts/Meter / 144 Leds/M --- 43.2 Watts/Meter

LED Resource: WS2813 led (5050 SMD RGB LED with built-in upgraded version of ws2811 ic)

LED: Each LED controlled separately

IC Type: Upgraded version ws2813 IC (built inside the 5050 smd rgb led)

From IC: (1 IC Sticks 1 led chip)

Pixels: 30leds/60leds/144leds/meter

Pitch: 16.6mm(1000/64)

Gray scale: 256

Colors: Full color RGB, dream color changing

Bits/color: 8-bits/color

FPC Color: BLACK/White

FPC Width: 30Leds/M---10MM / 60Leds/M---10MM/144Leds/M---12MM

Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicone Coating / IP67 Waterproof in Silicone Tube

Cuttable: Each LED is cuttable

Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with a free plug for plug

Working temperature: -40 - 70 °C

Storage temperature: -50 - 80 °C

Source Life: 50,000 hours

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)

Recommended controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

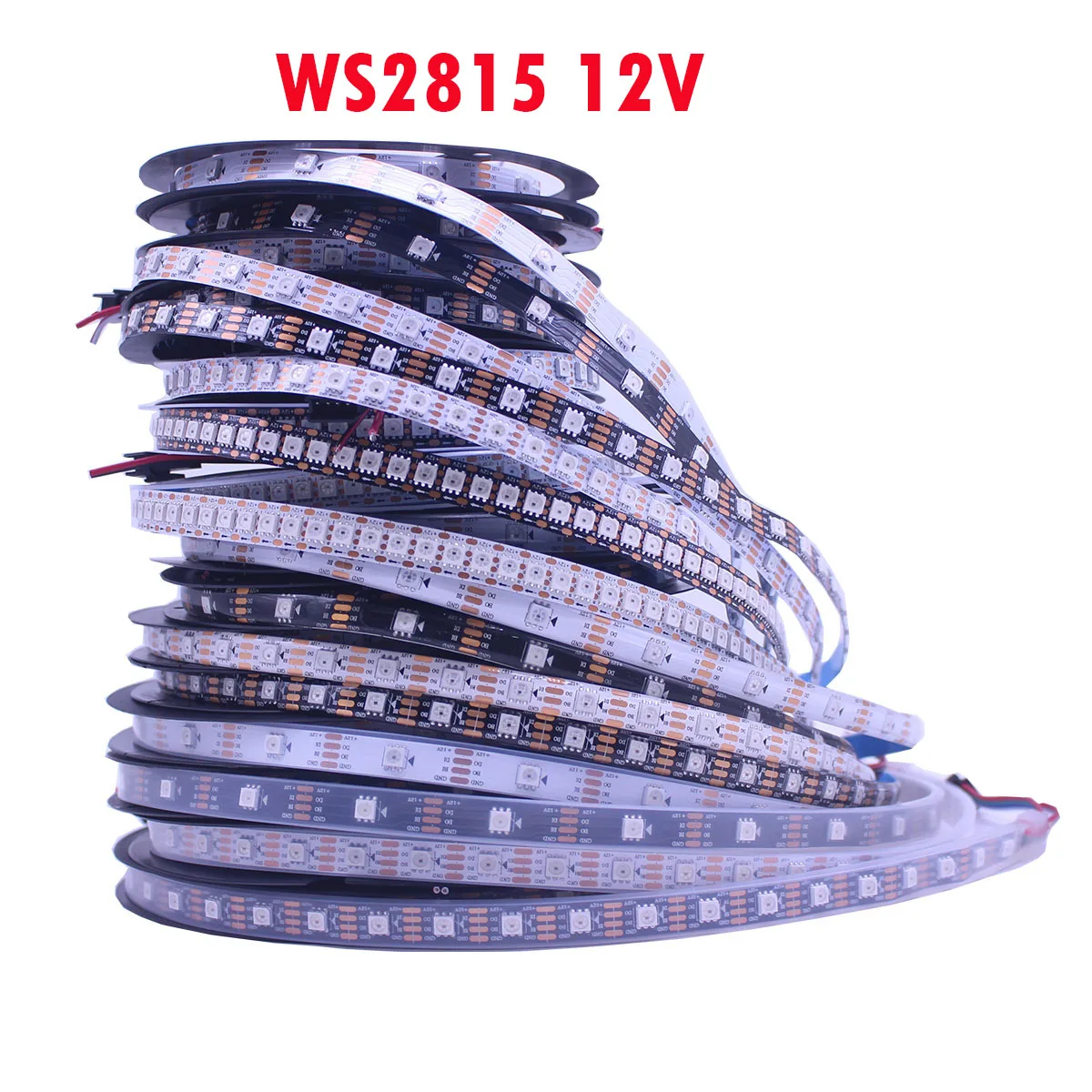

WS2815 LED strips

WS2815 LED strips:

Input voltage:............DC12V;

Power:10MM PCB--30leds/m ---- 9watts/meter

10MM PCB--60leds/m ---- 18watts/meter

10MM PCB--90leds/m ---- 88watts/meter

12MM PCB--144leds/m ---- 34watts/meter

LED resource:..........WS2815 led (5050 SMD RGB LED with built-in upgraded version of ws2811 ic)

LEDs: . .............. Each LED controlled separately

IC Type:. ................... Upgraded version WS2815 IC (built inside the 5050 smd rgb led)

From IC: . .................(1 IC sticks 1 led chip);

Pixel:. ........ 30/60/144/meter;

Pitches: . ....................... 16.6mm(1000/64);

Gray scale:. .............. 256;

Bits/color:. ................8-bits/color;

FPC width: :.............. 30leds/m ---- 10mm

. ...................... 60leds/m ---- 10mm

. ..................... 144leds/m ---- 12mm

FPC color:. ........ White/Black PCB

protection rate. ..... IP30/IP65/IP67

Colours:. ...................... Full color RGB, dream color changing;

Cuttable:.....................each LED is cuttable;

Package:. .................. In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive)

Working temperature................-40~70°C

Storage temperature................-50~80°C

source lifetime. .............. 50,000 hours

Plug. ..............4PIN connector terminal pair

(Red: 12V power, Green: Date line, Blue: standby date line, Black: GND)
